void simu1X

(

Int_t

nbcas = 100000

)

Same as simu1() but X-rays are added to the converted 417 keV.

Usage:

• root
• root [0] .L firstdemo.C
• root [1] simu1X() or root [1] simu1X(1000)

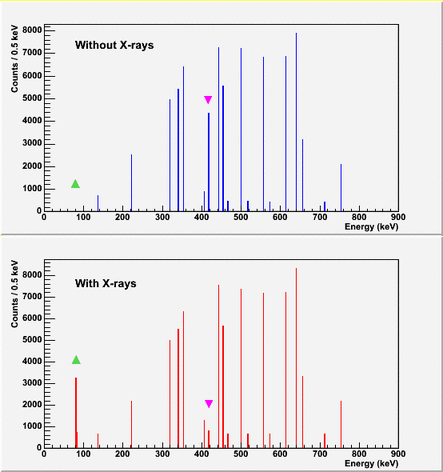

In the following picture is an illustration of the XGammaLink behavior.

• The first spectrum represents the gamma-ray spectrum of all gammas if all links are considered just as GammaLink
• The second spectrum represents the gamma-ray spectrum of all gammas if the 417 keV is considered as an XGammaLink. In this spectrum, the 417 keV transition (pink triangle) is less intense compared to the first spectrum. The lost in intensity in this peak comes from the conversion which gives two x-rays at low energy (green triangle).

Olivier Stezowski - 07/2004

PS: libGWPHYSICS and libGWGEM must be loaded before running this macro (see rootlogon.C)

Definition at line 385 of file firstdemo.C.
